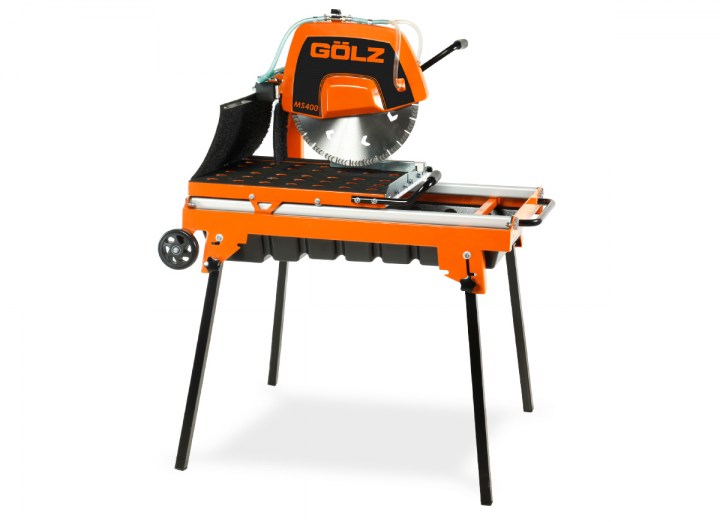

MS400

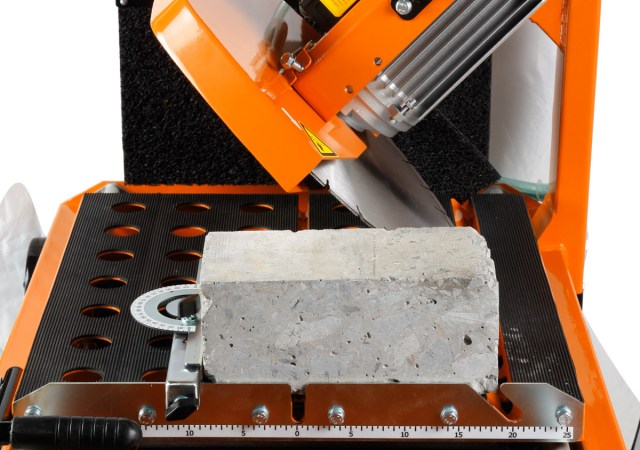

Compact and universal 16 in. masonry saw with 45° tilting head!
Cutting length 28 in. (700 mm)
Blade-Ø 16” (400 mm)
Cutting depth 5.375 in. (137 mm)

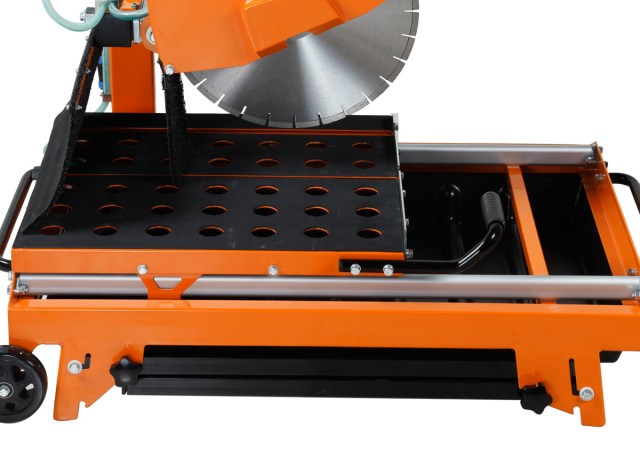

- Huge cutting table: 24×21 in. (600×530 mm)

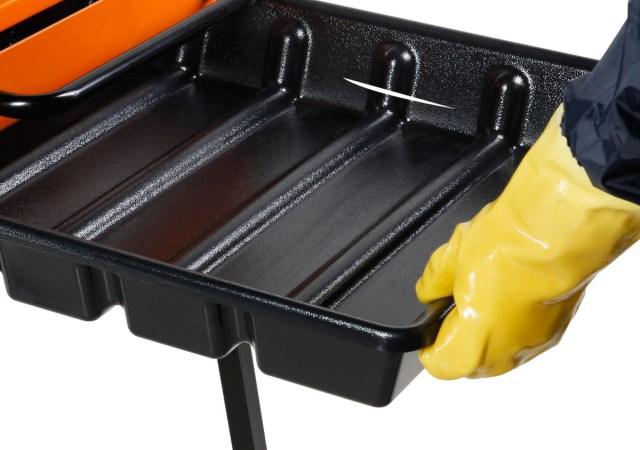

- Removable water tub, easy for cleaning
- Foldable legs

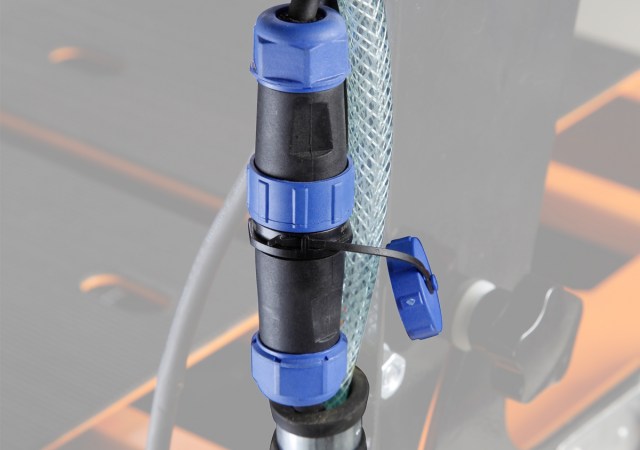

- Electric water pump with quick coupling, easy for changing the pump
- Max. cutting length up to 32 in. (800 mm)
- Removable blade guard for easy blade change

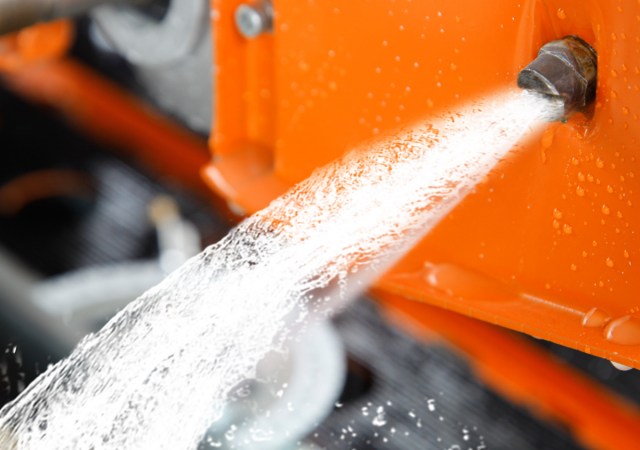

- Special water nozzle for optimized water cooling

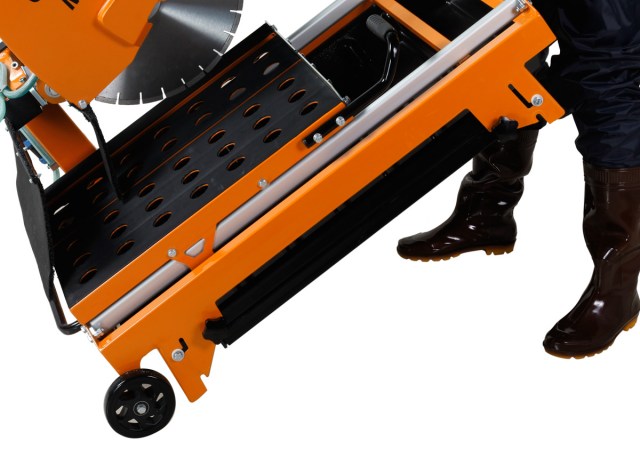

- Transportation wheel, easy for moving
Specifications
| GÖLZ MS400 | |
| Motor | Electric, 110V, 50Hz, IP54, 20A |
| Power | 2,2 kW / P1 (3PS) |
| Max. cutting depth | 5.375 in. (137 mm) |
| Max. blade size | 16 in. (400 mm) |
| Arbor hole | 1 in. (25,4 mm) |
| Cutting length | 28 in. (700 mm) |
| Shaft speed | 2800 min-1 |
| 45° miter-cut | Built-In |
| Water pump | S2, 110V, 50 Hz, 55Watt |
| Blade flange size ø | 3.5 in. (90 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 24×21 in. (600×530 mm) |
| Dimensions: (LxWxH) | 43×28×51 in. (1100×720×1290 mm) |
| Weight | 145 lbs (66 kg) |
| Order-Nr. | 0289 400 1000 |
| Accessories | |
| Spare water pump with connector plug | 0289 400 9002 |
| Set of Transport wheels | 0289 400 9068 |
