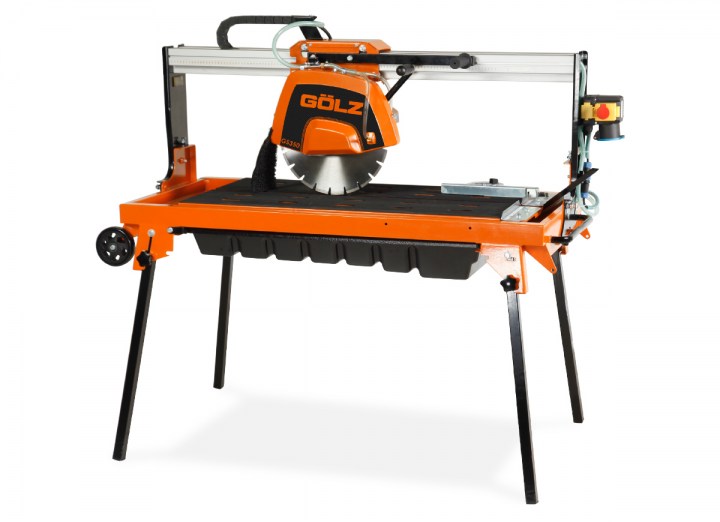

GS350
Robust bridge saw for the stone industry. Precise cutting of granite, marble, terrazzo and tiles.
Bridge Saw
Cutting length 47.25 in. (1,200 mm) Blade-14 in. (350 mm)

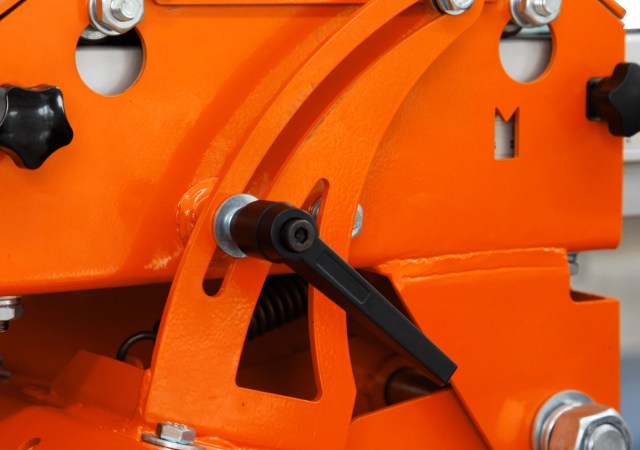

- Cutting head adjustable up to 45°
- Diamond blade 14 in. (350 mm)
- Max. cutting depth 4.375 in. (110 mm)

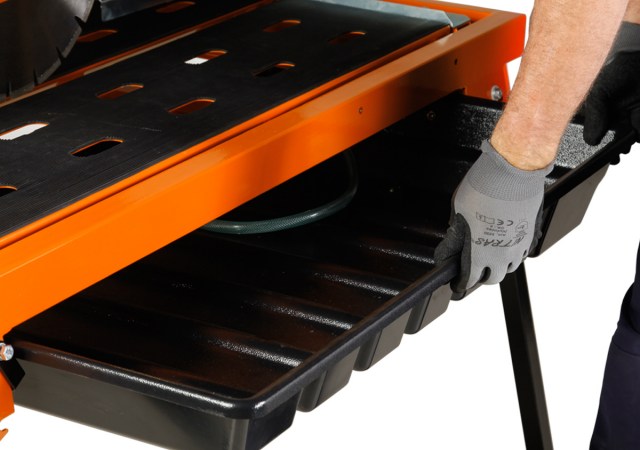

- Removable water tub, easy for cleaning

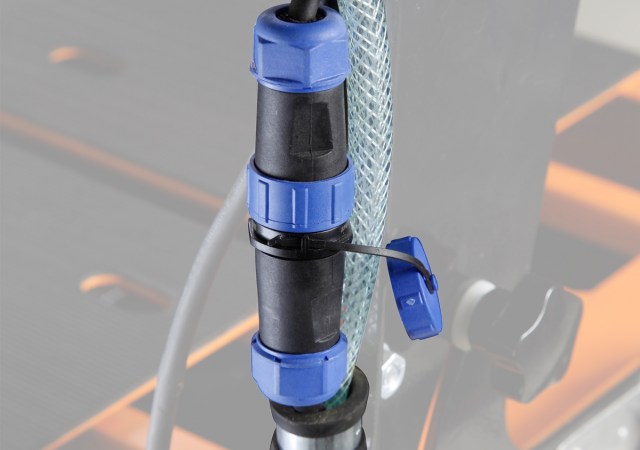

- Electric water pump with quick coupling, easy for changing the pump
- Foldable legs

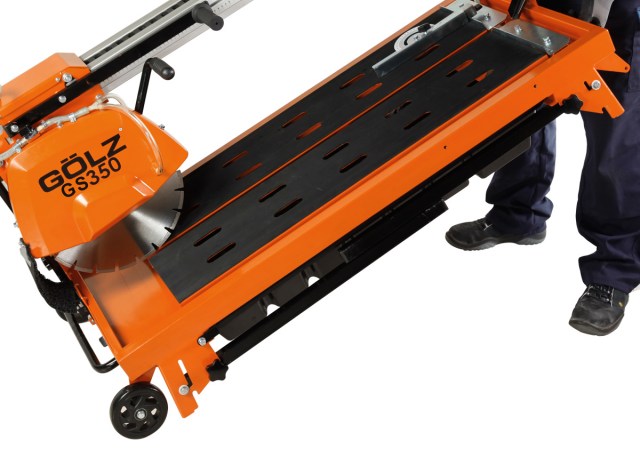

- Transport wheel, easy for moving and loading
- Adjustable cutting length

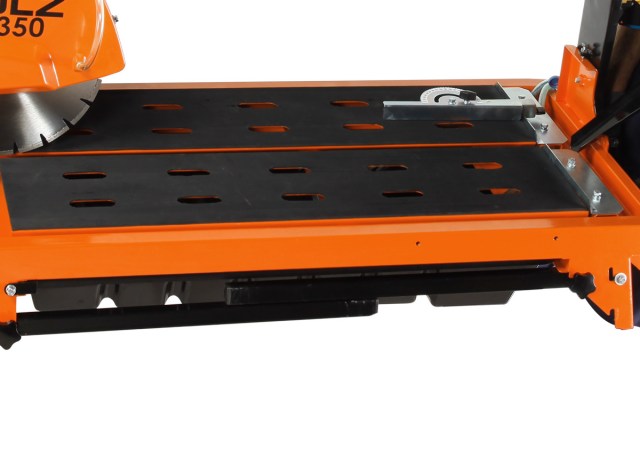

- Removable cutting table, easy for cleaning

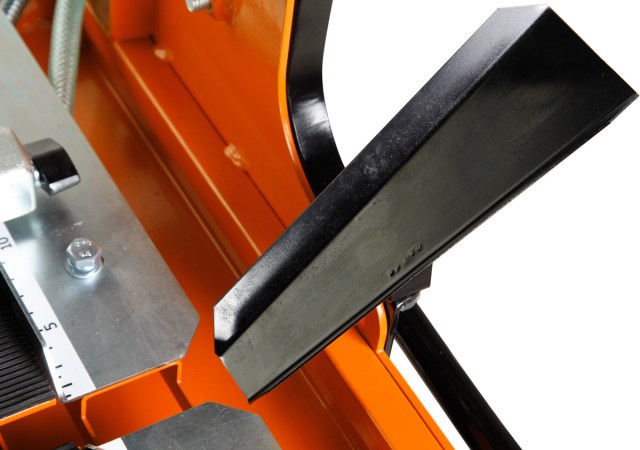

- The front shield prevents operator against water spray

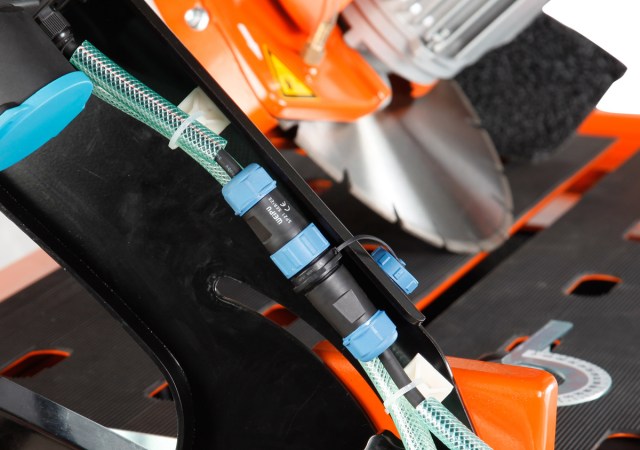

- Embedded cable protection chain, protects cables against damage
- Special water nozzle for optimized water cooling
Specifications
| GÖLZ GS350 | |
| Motor | Electric, 110V, 30A, 50Hz, IP54 |
| Power | 2,2 kW |
| Max. cutting depth | 4.375 in. (110 mm) |
| Max. blade size | 14 in. (350 mm) |
| Arbor hole | 1 in. (25,4 mm) |
| Cutting length | 39.375×47.25 in. (1000×1200mm) |
| Shaft speed | 2,800 min-1 |
| 45° miter-cut | Built-In |
| Water pump | S2, 110V, 20A, 50 Hz, 55W |
| Blade flange size ø | 3.5 in. (90 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 47.25×20.875 in. (1200×530 mm) |
| Dimensions(LxWxH) | 67.375×27.5×53.5 in. (1710×700×1360 mm) |
| Weight | 209 lbs (95 kg) |
| Order-Nr. | 0289 350 3000 |
| Accessories | |
| Spare water pump with connector plug | 0289 400 9002 |
| Side table (optional accessory) | 0289 350 3900 |
