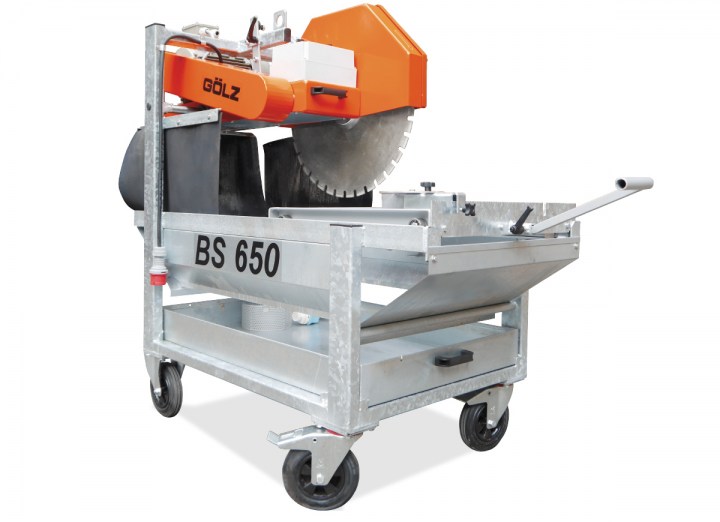

BS650
Powerful block saw for the long term use on the jobsite
Cutting length 20 in. (500 mm)
Blade-Ø 26 in. (650 mm)
Cutting depth 10.25 in. (260 mm)

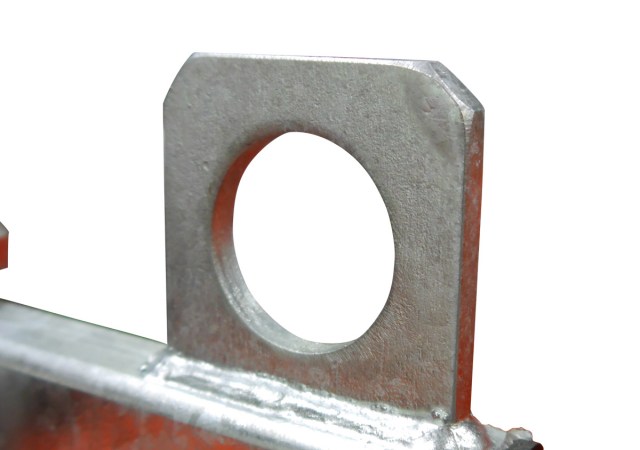

- Torsion free chassis with 4 crane eyes
- Sprung cutting head
- Cutting depth adjustable by nanual lever
- Cutting cart with steel bearing rollers
- Handle for moving the cutting cart
- Professional water pump
- Adjustable angle stop

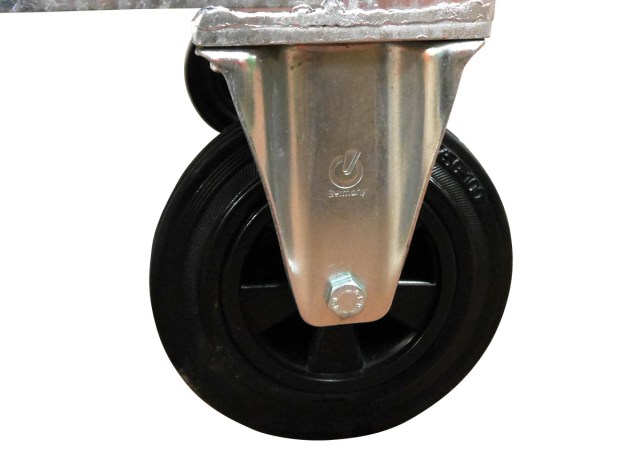

- 4 transport wheels, 2 with parking break

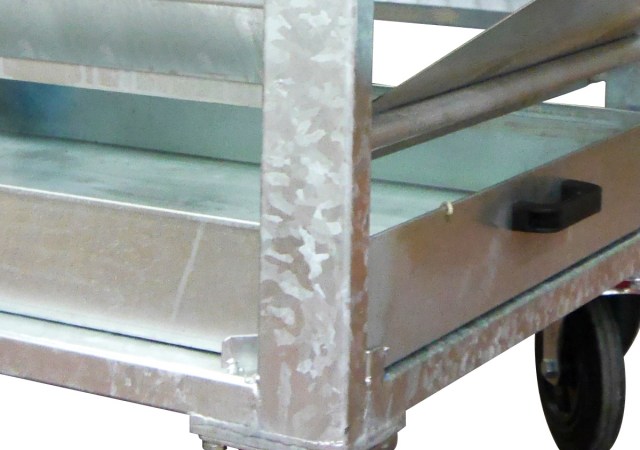

- Removable water tub, zinc coated
Specifications h5.
| GÖLZ BS650 | |

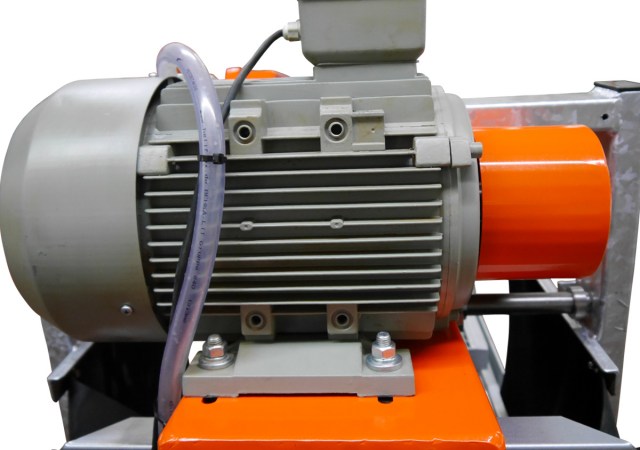

| Motor | 3-phase, 400 V, 50 Hz, 16 A, IP 54 |
| Power | 5,5 kW (7,5 PS) |
| Max. cutting depth | 10.25 in. (260 mm) |
| Max. blade size | 26 in. (650 mm) |
| Arbor hole | 60 mm |
| Cutting length | 20 in. (500 mm) |
| Shaft speed | 1020 min-1 |
| 45° miter-cut | no |
| Water pump | electric |
| Blade flange size ø | 4.75 in. (120 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 24×26.375 in. (610 × 670 mm) |
| Dimensions: (LxWxH) | 63×32×60 in. (1600×800×1500 mm) |
| Weight | 508 lbs (230 kg) |
| Order-Nr. | 0282 650 1000 |
| Accessories | |
| Spare water pump | 0282 650 0179 |
| Forkliftframe | 0282 650 9035 |
