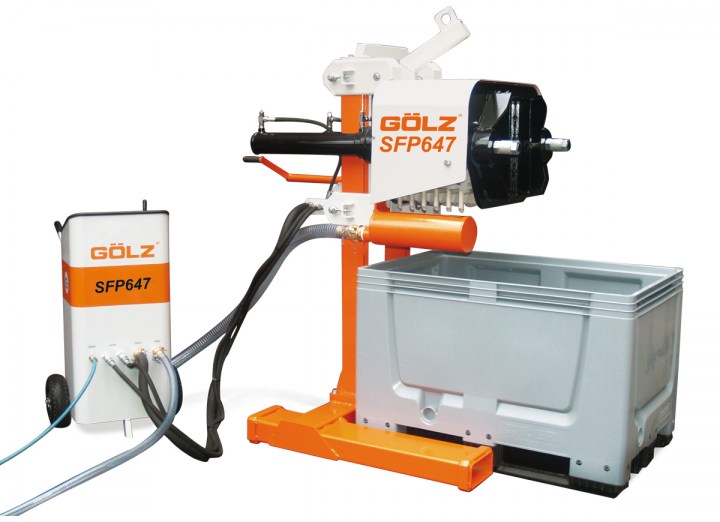

SLURRYFOX SFP 647
The portable solution for dewatering industrial slurry
By its innovative and compact design, the Slurryfox SFP 647 effectively seperates solids for reuse or proper disposal.
It´s innovative system and design, make the Slurryfox an economical and ecological benefit.
The SFP 647 is the green solution for proper disposal of concrete slurry in the concrete industry.
The 100 % pneumatic operated filter press can be attached with standard or high volume pump.
- Innovative and environmentally friendly
- Rugged and compact steel construction
- Mobile for jobsite processing
- Reuse water multiple times
- Solids can be recycled or disposed
- Reuse water multiple times
FUNCTIONALITY SFP 647
- Economic and environmentally friendly
- Solid and compact steel construction
- Portable for different job-site installations
- Forklift base for easy setup and transportation

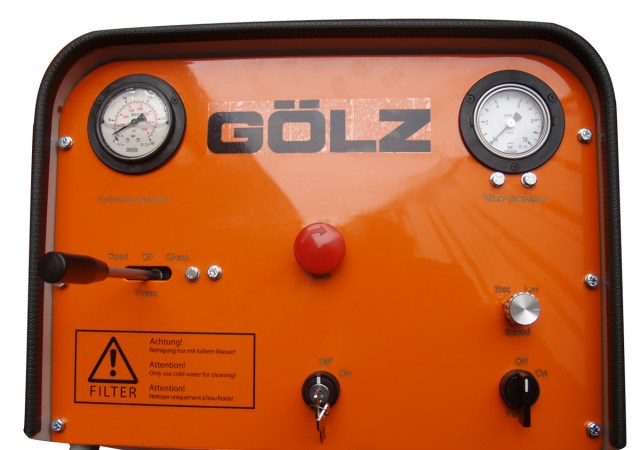

- Seperate control unit includes full operation installation as pneumatic airsupply, slurry pump and pneumatic/hydraulic converter and control panel.
Two hydraulic cylinders are driven by a pneumatic-hy-draulic converter which presses the filter chambers to-gether so that the solids and the water are seperated.
Specifications
| US Standard | Metric | |
| Operating with high volume pump | 100% pneumatic | |
| Air required | 132 gal/min at 101 psi | 500 l/min, 7 bar |
| Recycling Capacity/hour | 528 gal, Solids 350 lbs | 2000 l-Solids 160 kg |
| Recycling Capacity/cyclus | 105 gal, solids 70 lbs | 400 l-Solids 32 kg |
| Filtervolume (solids) | 8 gal | 30 Liter |
| Dimensions (LxWxH) | 1200×800×1600 mm | 48×32×64 in. |
| Weight | 1,144 lbs | 520 kg |
| Order number | 0284 000 3000 |
