SLURRY FOX SFP 3L
The mobile solution for your day to day operation
Portability:The Slurryfox SFP 3L is designed for sawing and drilling contractors who require portability on the jobsite for water recycling and reuse.
One-Man operation: The filter press incorporates many of the same components as the Slurryfox SFP 8L but is built so that it can be handled by one person.
360° closed-loop concept: The SFP 3L is the ideal solution for slurry water processing at the source, or on the truck, utilizing the “360°“ closed-loop concept for water recycling.
Powered by a single-phase air compressor, the new SFP 3L is the most efficient solution for concrete slurry processing. Separation of solids and water allows for compliant disposal.

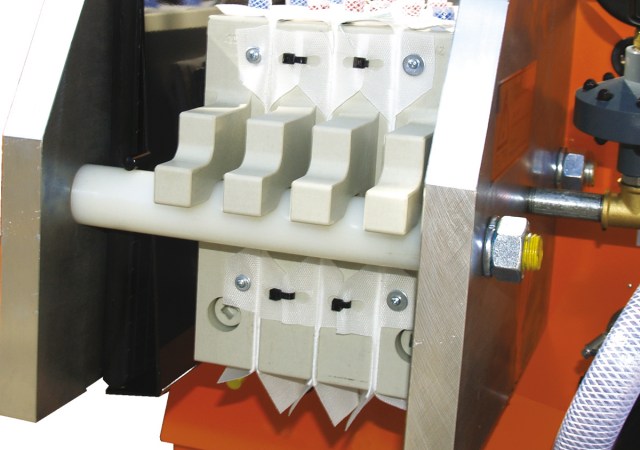

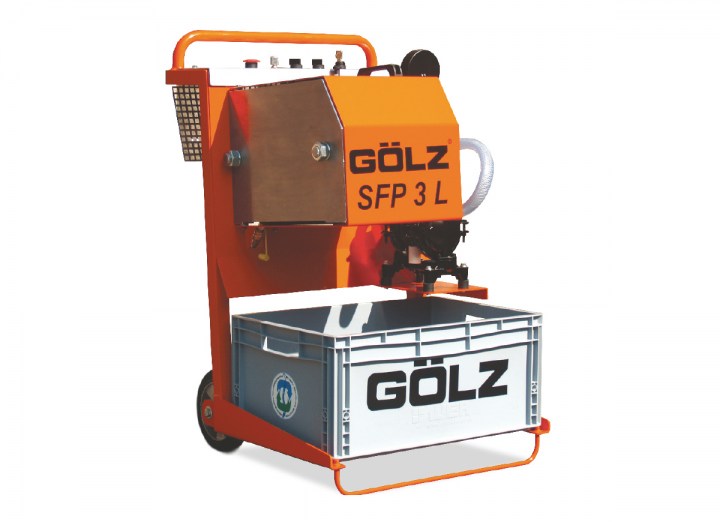

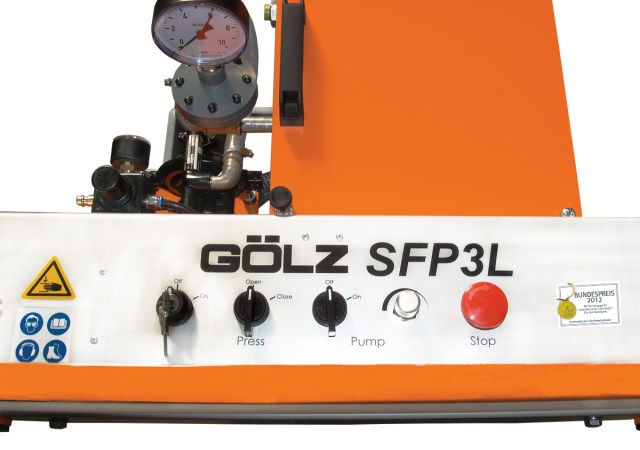

Consisting of three elements – container, chamber filter press and control unit – the SFP 3L is the most compact, mobile, simple to operate and efficient filter press on the market.
The new patented airbladder technology allows for a lightweight and compact design of the SFP 3L – weighs just 174 lbs. (79 kg) for easy transport.
Specifications
| US Standard | Metric | |
| Operating: | 100% pneumatic | |
| Air required: | 66 gal / 116 psi | 250 l / 8 bar |
| Recycling Capacity | 100-160 gal/hour | 400 – 600 l/Std |
| Filtervolume (solids) | 0,7 gal | 2,4 liter |
| Dimensions (LxWxH) | 24×25×38 in. | 600×630×950 mm |
| Weight | 174 lbs | 79 kg |
| Order number | 0284 000 2000 |
Recommended Air Compressor
| Air compressor | GV22-11 or (Ingersoll Rand P1.5IU-A9) | |
| Motor | Single Phase 230 V, 2,2 kW (115 V- 1,5 kW) | |
| Capacity | 89 gal/min | 340 l/min |
| Airpressure | 116 psi | 8 bar |
| Compressor Unit | 2 cylinder – 1.450 rpm | |
| Order number | 0295 150 0115 |
