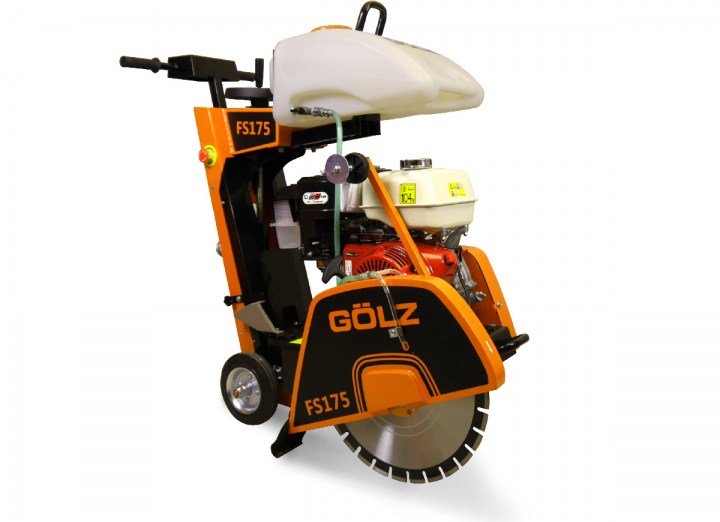

FS 175
Compact and solid Push Saw for small services and repair jobs in roadworks. The height adjustable Anti-Vibration Handles have a clear focus on operators convenience. Compact - Robust - Comfortable.
13 HP Honda gas engine- Blade-ø 18 in. (450mm) – Cutting depth 6 1/2 in. (165 mm)

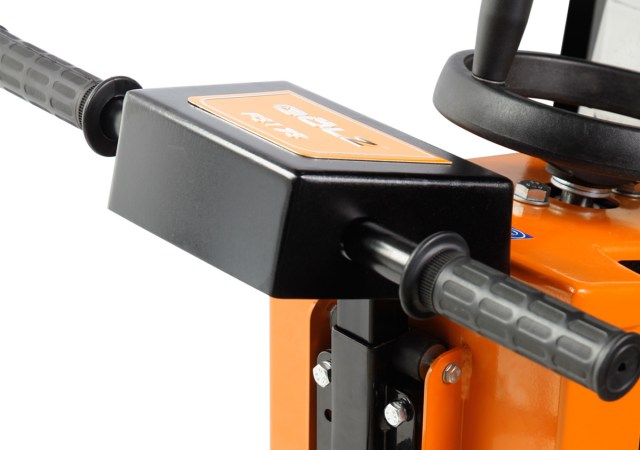

- Adjustable anti vibration handles for operators comfort

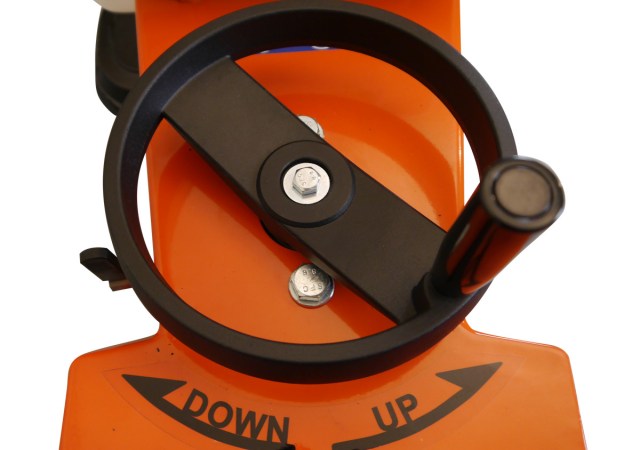

- Cutting depth adjustment by handwheel

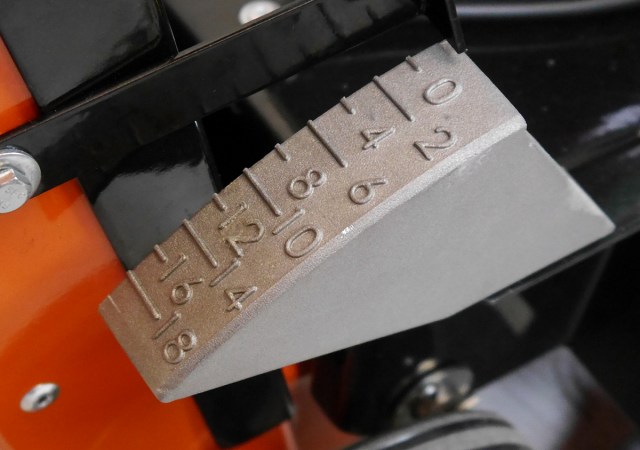

- Cutting depth indicator
- Front cutting guide
- Parking break
- Lifting frame

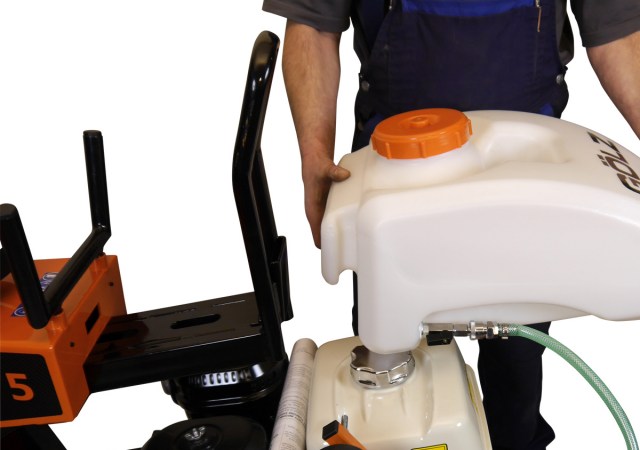

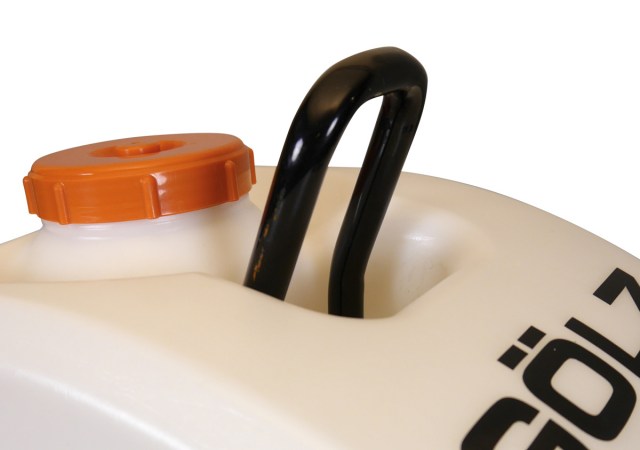

- 26 1/2 qt (25 Liter) water tank, easy to fill
- Big rear wheels for good chassis clearance
- Durable Poly-V belt for an optimum of power transmission
Specification
| US Standard | Metric | |
| Max Cutting depth | 6 1/2 in. | 165 mm |
| Blade diameter | 18 in. | 450 mm |
| Shaft size | 1 in. | 25,4 mm |
| Water tank | 26 1/2qt | 25 Liter |
| Engine | Honda GX390 | |
| Engine power (net power) | 13HP/9,5kW (11,8HP/8,7kW) | |
| Shaft speed | 2.300 rpm | |
| Feed motion | Push | |
| Cutting depth adjustment | Handwheel | |
| Power transmission | Poly-V Belt | |
| Hand Arm Vibrations | 4,5 m/s2 | |
| Dimensions (LxWxH) | 48 in. x 19 in. x 46 in. | 1220×491×1160 mm |
| Weight | 243 lbs. | 110 kg |
| Order-No. | 0282 175 6000 |
